IK08 3 Side Emitting Neon LED Strip IP68 24VDC For Outdoor Building

Brand Name : COMI Landscape

Model Number : F18

Certification : CE, ROHS

Place of Origin : China

MOQ : No MOQ

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100000meters per month

Delivery Time : 3-20days

Packaging Details : 20meters/roll

Item Name : IP68 3-Side Emitting Neon LED Strip

Input Voltage : 24VDC

Materials : PVC or Silicone

Color : Mono, tunable white, RGB, RGBW

Optional Function : Standard PWM control or dimming, optional SPI or DMX

Cable Entry Way Options : Direct end Entry cable, bottom Entrh cable, or side Entry cable

IP Rate : IP68

Warranty : 3 or 5 years Warranty

Contact Now

IP68 flexible top view neon LED flex F18 line with a W16.5×H16.5mm cross section. Opal polyurethane encapsulation offering a premium water proof sealing, UV resistance, chemical stability against urban gases and protection against abrasion. Vertical bending only, with radius of 8mm excellent solution for indoor / outdoor organic facade accent lighting or decorative applications requiring IP67 even IP68 ingress. Fully dimmable with PWM,0/1-10V,DALI, DMX512.

Features and Benefits:
▪ 3 sides emitting with Uniform and even light output.
▪ 260 degree beam angle.
▪ Flat Shape Ivory White diffused PVC or silicone luminous surface.
▪ Continuous and uniform illumination, no LED dot or dark spot.
▪ Vertical(upward-to-downward) bending only with radius of 8mm.
▪ Optional input Voltage 12VDC, 24VDC or 36VDC
▪ Working with Dali, 0/1-10, DMX,PWM, Triac for options.
▪ Constant Current IC built in optional.
▪ Can be cuttable at regular intervals without damage the rest of neon strip.
▪ Optional IP67 DIY Screws type and IP68 mould injection type connectors.
▪ Optional Single end or dual ends power cable for neon LED flex.

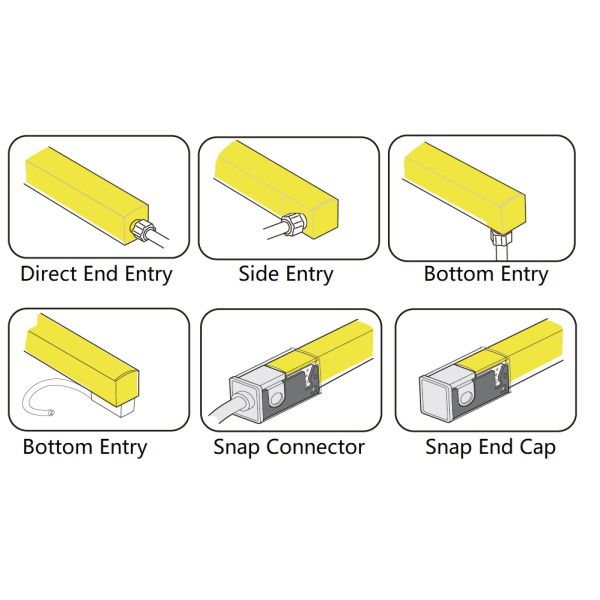

Cable output sides available: (1) Direct end, (2) bottom, or (3) side cable output.
▪ Continuous run length Up to 30meters(for constant current IC driving only).
▪ Provides various smart accessories for mounting and installation.
▪ Full encapsulated with IP68 Level and rating IK08.
▪ Ambient temperature:-25°C to +55°C
▪ Standard 3 years warranty (5 years is available).

Important Notes for neon LED flex when underwater use:
1. Please select mould injection connector and the depth of underwater is <2Meters.
2. Used in swimming pool or fresh water only, CAN NOT be used in sea water.

IK08 3 Side Emitting Neon LED Strip IP68 24VDC For Outdoor Building

Techinical Specification:

Part Number
Working
Mode
 Color
Input
Voltage
 Power Light Source
Mini Cutting
Length
Max Length Per run
(Meters)
 Bending Direction
F18-24V-3528-120 CV Mono 24VDC 9W/Meter
3528SMD LED,
120pcs/Meter
10cm
(12LEDs)
Single feed:10M
Dual feed :20M
 Vertical
F18-24V-3258-144 CV Mono 24VDC 10W/Meter
3528SMD LED,
144pcs/Meter
8.33cm
(12LEDs)
Single feed:10M
Dual feed :20M
 Vertical
F18-24V-2835-120-CC CC Mono 24VDC 10W/Meter
2835SMD LED,
120pcs/Meter
5cm
(6LEDs)
Single feed:15M
Dual feed :30M
 Vertical
F18-24V-2835-120-DW CV Tunable White 24VDC 15W/M
2835SMD LED,
120pcs/Meter
10cm
(12LEDs)
Single feed:10M
Dual feed :20M
 Vertical
F18-24V-5050-72-RGB PWM/CV RGB 24VDC 13W/M
5050 SMD LED,
72PCS/Meter
8.33cm
(6LEDs)
Single feed:10M
Dual feed :20M
 Vertical
F18-24V-5050-60-RGBW PWM/CV RGBW 24VDC 17W/M
5050 SMD LED,
60PCS/Meter
 10cm (6LEDs)
Single feed:10M
Dual feed :20M
 Vertical
F18-24V-5050-70-DMX-RGB
DMX
(RS485)
RGB, Mono,
Tunable White
 24VDC 15W/M
5050 SMD LED,
70PCS/Meter
 10cm (7LEDs)
Single feed:8M
Dual feed :16M
 Vertical
F18-24V-5050-70-DMX-RGBW
DMX
(RS485)
 RGBW 24VDC 18W/M
5050 SMD LED,
70PCS/Meter
 10cm (7LEDs)
Single feed:8M
Dual feed :16M
 Vertical
F18-24V-5050-70-SPI-XX SPI
RGB, Mono,
Tunable White
 24VDC 16W/M
5050 SMD LED,
70PCS/Meter
 10cm (7LEDs)
Single feed:8M
Dual feed :16M
 Vertical
F18-24V-5050-56-SPI-RGBW SPI RGBW 24VDC 15W/M
5050 SMD LED,
56PCS/Meter
12.5cm
(7LEDs)
Single feed:8M
Dual feed :16M
 Vertical

IK08 3 Side Emitting Neon LED Strip IP68 24VDC For Outdoor Building

IK08 3 Side Emitting Neon LED Strip IP68 24VDC For Outdoor Building

IK08 3 Side Emitting Neon LED Strip IP68 24VDC For Outdoor Building

IK08 3 Side Emitting Neon LED Strip IP68 24VDC For Outdoor Building
