6A * 5 Channels Led Dmx Decoder For Led Lights 16bit / 8bit Resolution Optional

Name: 6A 5 Channels Led Dmx Decoder For Led Lights 16bit 8bit Resolution Optional
Brand: LT-Series
Price: 1 USD

Wholesale 6A * 5 Channels Led Dmx Decoder For Led Lights 16bit / 8bit Resolution Optional from china suppliers

Brand Name : LT-Series

Model Number : CL-LT-955-OLED

Certification : FCC, CE, ROHS, ISO 9001:2008

Place of Origin : Guangdong China

MOQ : 1

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 100000pcs per month

Delivery Time : 3~12 Days

Packaging Details : Package Size(1piece): L182×W91×H41(mm), G.W.: 0.6KGs

Item Type : 5CH DMX decoder

Input signal : DMX512/RDM

Input voltage : DC12V～DC24V

Max load current : 6A ×5CH Max. 30A

Max output power : (0~72W...144W) x5CH Max.720W

DMX512 socket : XLR-3, RJ45, Green terminal

Control mode : DIM /CT /RGB/ RGBW/ RGBWY

DIM Curve : 0.1～9.9

Gray scale level : 8bit(256 levels)/16bit(65536 levels)

Photoelectric Isolation : Yes

Dimension : L169×W80×H39(mm)

Warranty : 5 Years

Contact Now

CL-LT-955-OLED 6A * 5Channels CV DMX Decoder Up to 720W Output Power Input DMX512 / RDM

Product Introduction:

Designed for Hi-power multiple channels application,5 channels output, and Max. 6A current per channel, up to 720W output power.
Easy operation with OLED screen and the touch buttons.
5 kinds of mode optional: single color, color temperature, RGB, RGBW, RGBWY.
Support 3 kinds of DMX ports with signal isolation function:5-pin XLR,RJ45, green terminal.
With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting,equipment recognition, etc.
With photoelectric isolation function.
With shortcut protection and over load protection, as well as warning function when fault.
With fast self-testing function.
16bit / 8bit resolution optional.
Multiple dimming curve (0.1~9.9) optional.

Technical Specs:

nput signal	DMX512/RDM
Input voltage	DC12V～DC24V
Max load current	6A ×5CH Max. 30A
Max output power	(0~72W...144W) x5CH Max.720W
DMX512 socket	XLR-5, RJ45, Green Terminal
Control mode	DIM/CT/RGB/RGBW/RGBWY
DIM Curve	0.1～9.9
Gray scale level	8bit(256 levels)/16bit(65536 levels)
Photoelectric Isolation	Yes
Working temperature	-30℃～65℃
Dimension	L169×W80×H39(mm)
Package Size	L182×W91×H41(mm)
Weight (G.W)	450g

6A * 5 Channels Led Dmx Decoder For Led Lights 16bit / 8bit Resolution Optional

Outer Size(mm):

6A * 5 Channels Led Dmx Decoder For Led Lights 16bit / 8bit Resolution Optional

Multiple dimming curve ( 0.1~9.9) optional:

6A * 5 Channels Led Dmx Decoder For Led Lights 16bit / 8bit Resolution Optional

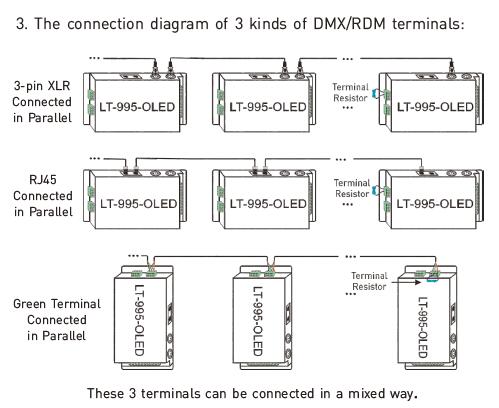

Typical Wiring Digaram:

6A * 5 Channels Led Dmx Decoder For Led Lights 16bit / 8bit Resolution Optional
